Jumper

_SEH9700
ELFO subsea nyweb (23)
ELFOsubsea_OilFilling_00008

Jumper System

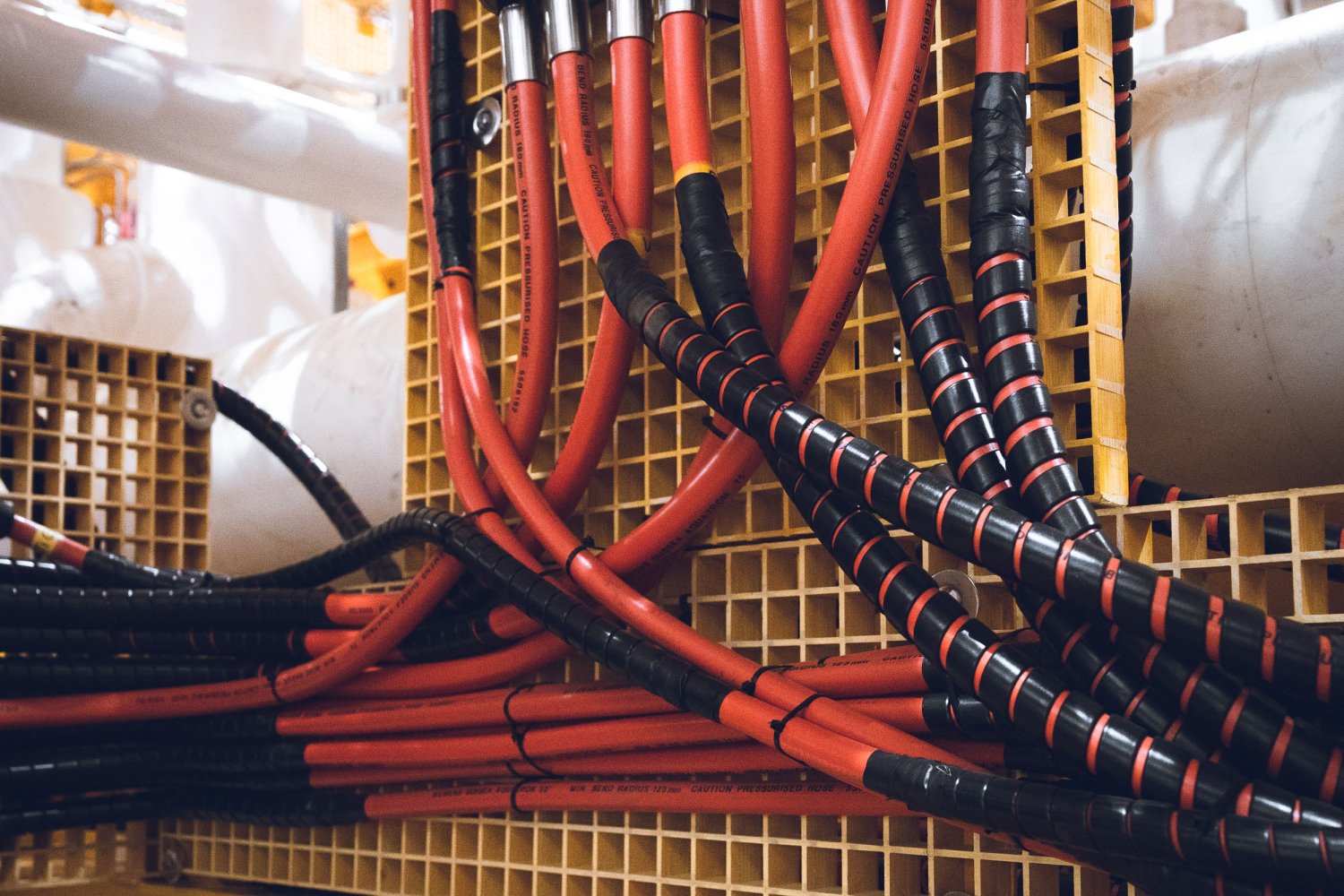

ELFO jumper system for optical and electrical distribution of power and communication subsea. Multiple configurations for connections to various connectors, instruments and equipment. System is based on field proven technology with dual barriers to seawater, and is seen as the industry standard for Subsea distribution products all over the world.



GET IN TOUCH

Download product sheet

Specifications & standards

_SEH9700
ELFO subsea nyweb (23)
ELFOsubsea_OilFilling_00008

Jumper System

ELFO jumper system for optical and electrical distribution of power and communication subsea. Multiple configurations for connections to various connectors, instruments and equipment. System is based on field proven technology with dual barriers to seawater, and is seen as the industry standard for Subsea distribution products all over the world.



GET IN TOUCH

Download product sheet

Specifications & standards

Technical Description

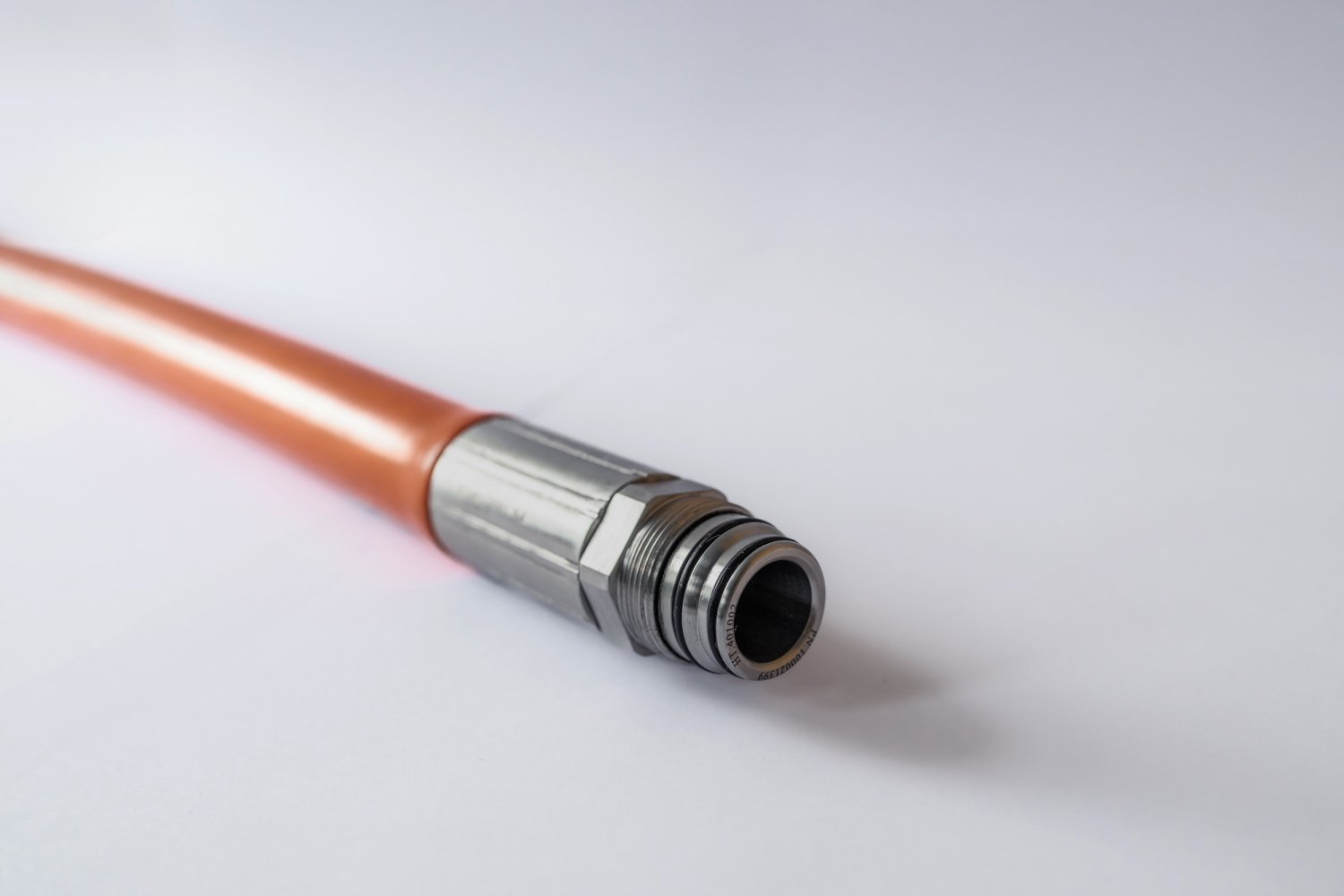

The ELFO jumper system complies to API17F, and all production and qualifications are based on years of experience with subsea distribution systems. With hoses in sizes of 13mm and 20mm all terminated to standard MKII fitting assemblies we can configure a large number of variants for your specific needs.

The Reinforced hose consist of SBR liner with NBR/PVC cover material. Fitting assemblies, splitboxes and adapters are made in Super duplex. The product will be fully configured to your needs in length, number of legs and connected components.

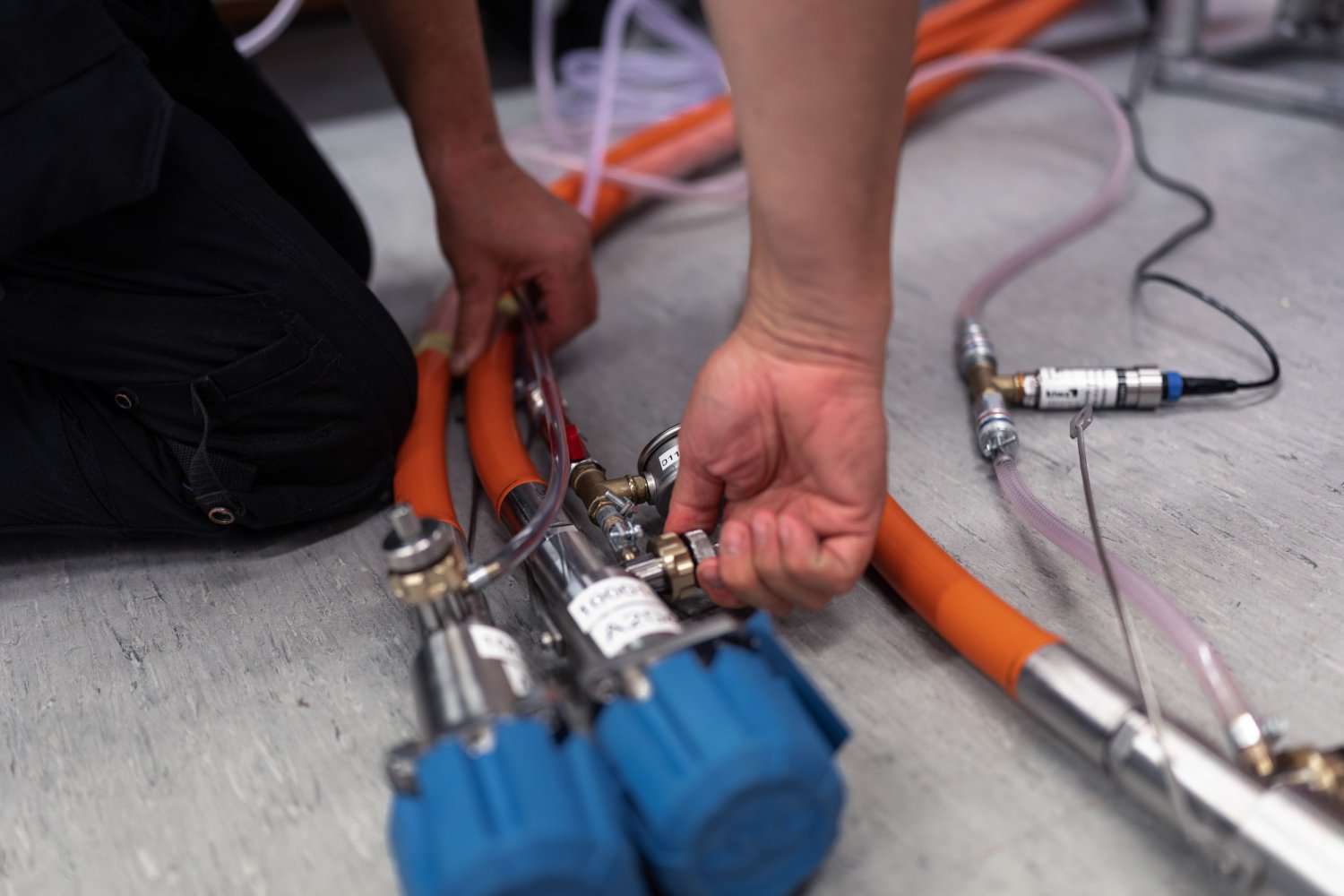

During production all sealing interfaces will be leak tested before product is pressurizied with high quality silicone oil to specified pressure. Before delivery the product will be tested in accordance to ELFO standard FAT procedure or in accordance to your specific requirements

Why choose ELFO?

With a configurable product based on standard components on stock we can configure, build, test and deliver most jumpers on short notice. If you have specific requirements to hyperbaric pressure cycling or environmental testing, like ESS random vibration, we are flexible to adapt.

  • Design Life: 30 years
  • Water depth: 4000 meters
  • Temperature ratings: -18 -40°C
  • Min. Bend radius ID13mm: 120mm
  • Min. Bend radius ID20mm: 160mm

Designed, produced and qualified in accordance to API17F, API RP17N, API RP17Q, IPC/WHMA-A-620

EPC

ELFOsubsea_Ansatte_00012
ELFOsubsea_Ansatte_00016
ELFOsubsea_Ansatte_00015

EPC Projects

ELFO has developed two streamlined processes for project management. One process for “built to print” projects where we produce and deliver in accordance to your detailed manufacturing documents and drawings. The other is “built to spec” and includes engineering and design verification. We call it EPC project, and is tailored to your needs. Typical project tasks includes work from feasibility and concept to commissioning, maintenance and obsolescence management.



GET IN TOUCH

Standards

ELFOsubsea_Ansatte_00012
ELFOsubsea_Ansatte_00016
ELFOsubsea_Ansatte_00015

EPC Prosjects

ELFO has developed two streamlined processes for project management. One process for “built to print” projects where we produce and deliver in accordance to your detailed manufacturing documents and drawings. The other is “built to spec” and includes engineering and design verification. We call it EPC project, and is tailored to your needs. Typical project tasks includes work from feasibility and concept to commissioning, maintenance and obsolescence management.



GET IN TOUCH

Standards

Technical Description

EPC is divided in several process steps, and starts with a thorough review of contract commercial and technical requirements. During three phases of engineering we flow down your requirements and release all manufacturing documentation. Pre-production meeting is held to secure the quality of both materials and documentation, and that all design verifications and qualifications are passed and accepted. All manufacturing and assembly steps are controlled through the production line, and a Factory Acceptance Test and Final Inspection is performed before delivery. A full documentation package will be delivered with the equipment. All documents and inspection/test activities are controlled by customer approved documents (SMDL, ITP, MRB Index)

Why choose ELFO?

  • Years of experience in the industry.
  • Innovative thinking for systems, products and processes.
  • Focus on co-operation with customers and sub-suppliers, quality and OTD (On Time Delivery).

  • ISO 9001

Testing at KIWA

Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

ELFO primarily operate in the subsea segment of the oil and gas industry. We support our clients and develop our own products. We’re a small, local company, but we still perform service work at clients’ locations worldwide.
