G2M Fiber Penetrator
G2M Fiber Penetrator
G2M® Fiber Seal is used in various industries, including subsea, electronics, aerospace, automotive, and medical devices, where it is vital to protect sensitive components from environmental factors such as pressure, moisture, gases, or contaminants.
G2M® seals are suitable for applications where maintaining a controlled internal environment is essential.
G2M Fiber Seals
G2M® fiber seal is used in various industries, including subsea, electronics, aerospace, automotive, and medical devices, where it is vital to protect sensitive components from environmental factors such as pressure, moisture, gases, or contaminants.
G2M® seals are suitable for applications where maintaining a controlled internal environment is essential.
Technical Description

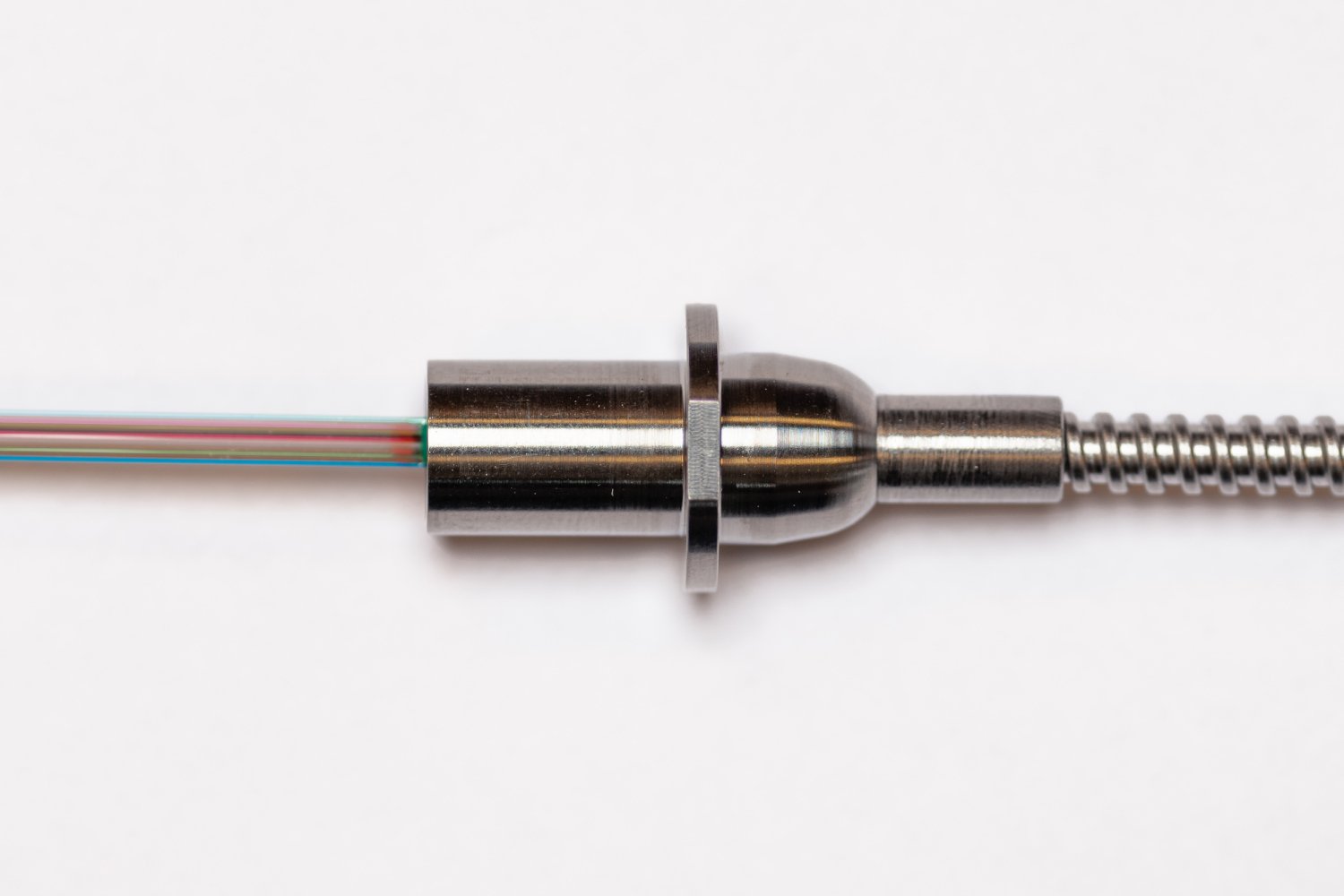

A G2M® Fiber Seal is a specialized type of seal used to join a glass to a metal component in a way that is both gas-, watertight and can withstand extreme pressures.
Why choose ELFO?
- Located in Norway.
- Small, flexible, and innovative.
- Competence on optical fiber applications.
- Proven against the most stringent requirements.
- Modern-state-of-the-art production.
- Quick prototyping & production.
- Applications: Where hermetic pressure barrier around optical fibers is required
- Design Life: Up to 30 years
- Max. Working Pressure: 5 000 psi / 345bar
- Operational Temperature: -18°C to 70°C

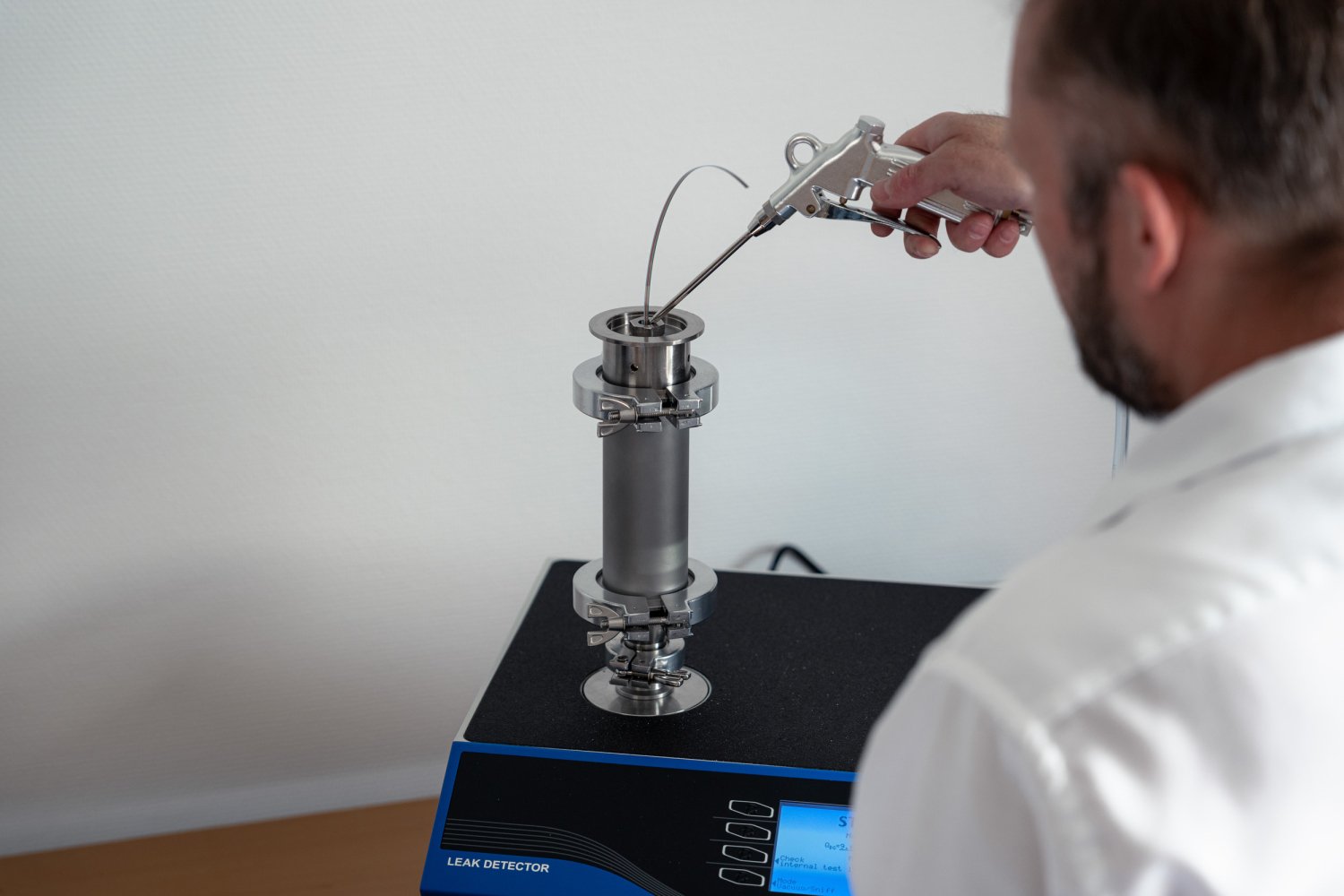

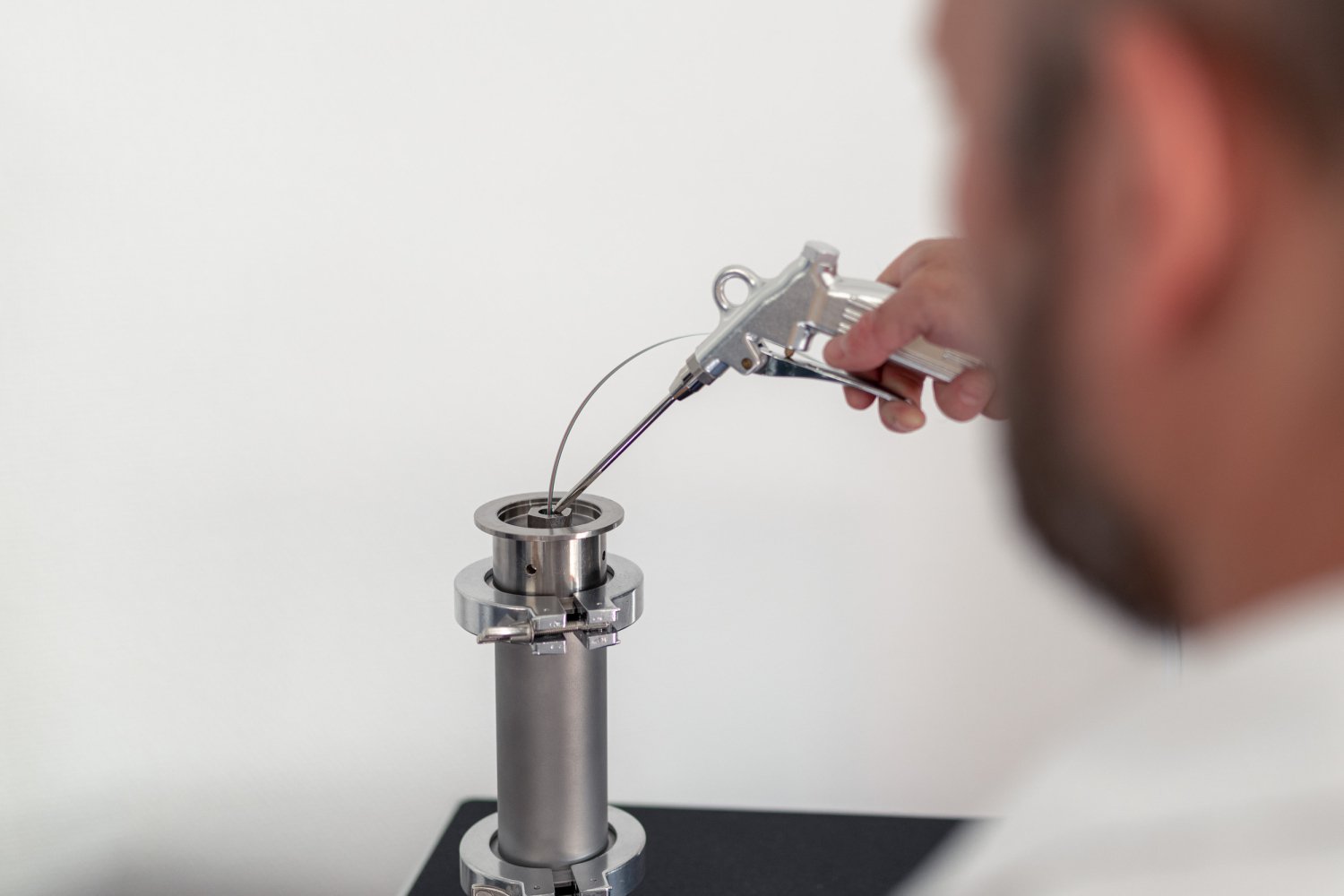

- Leak Rate (Helium): < 1 x 10-8 mbar*l/sec.
- Optical Performance: Insertion Loss < 0.1 dB, Reflectance < -80 dB.
- Material (body): Titanium, Inconel (*)
- Mounting (body seal): Polymer & Metallic
- Fiber Count: 1 to 12 (*)
- Fiber Types: SM or MM, in ribbon or loose (*)
- Connectorization: Any type, LC, ST, MT, etc. as UPC or APC (*)
- Fiber Protection: Configured with furcation tubing as needed or just bare fibers.
* Can be adjusted per need.
Qualified in accordance with API 17F.
